Features

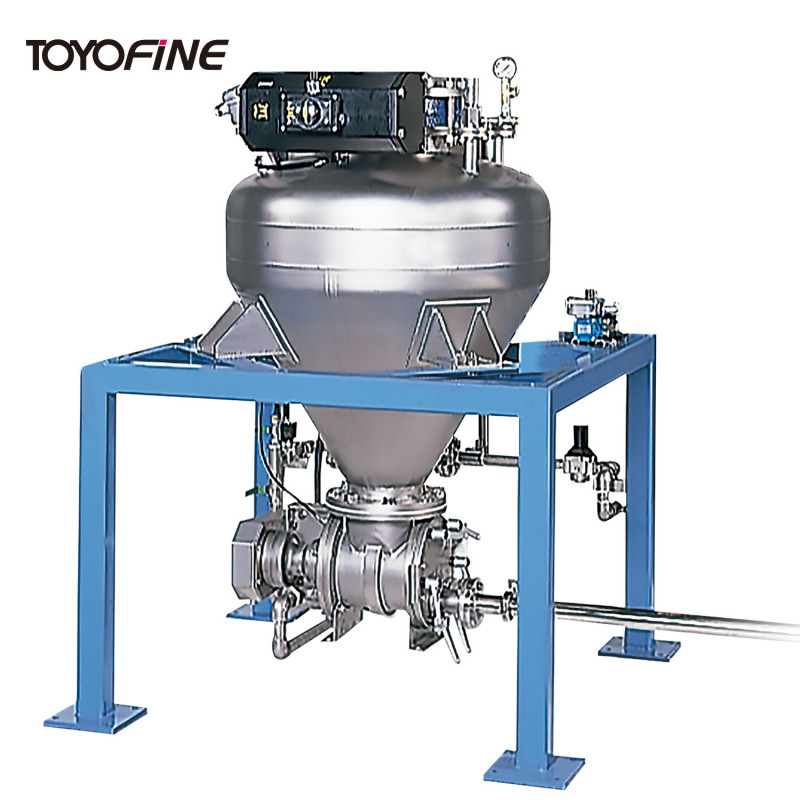

• Versatile, efficient and flexible dense-phase pneumatic conveying device
• The requirements for the pneumatic power-conveying device are to use a small amount of air to convey a large amount of powder over a long distance without destroying the raw materials during the conveyance process, so as to achieve a stable conveyance effect.
• This device has been specially developed for this purpose. Equipped with a special rotary feeder (RF) adapted to high-pressure conditions, it realizes flexible dense-phase, low-speed pneumatic conveyance.
• From granules to ultrafine powder, it is not affected by material characteristics, regardless of conveying distance, so it can be applied to a wide range of purposes.

• The conveying capacity can be simply adjusted by the speed of the rotary feeder (RF) (variable capacity range is about 10:1).
• The pneumatic conveyance can be stopped and restarted at any time (also true during power outage)
• In order to set up high-quality conveyance conditions, boosters are not required up to medium conveying distances.
• Because it is not affected by material characteristics, it can convey materials in a fixed amount and the conveying pressure is stable.
• The rotary feeder has a sanitary structure for easy cleaning.
• Low-speed, dense-phase conveying efficiency is high (conveying speed: 0.5~5m/sec; mixing ratio: ~150)
• Both batch conveyance and continuous conveyance are possible.

Application Industries

• Chemicals, foods, medical products, pigments, dyes
• Granules, granular substances similar to granulated products
• Feeding is conducted while the reaction tank and lightweight tank are being controlled

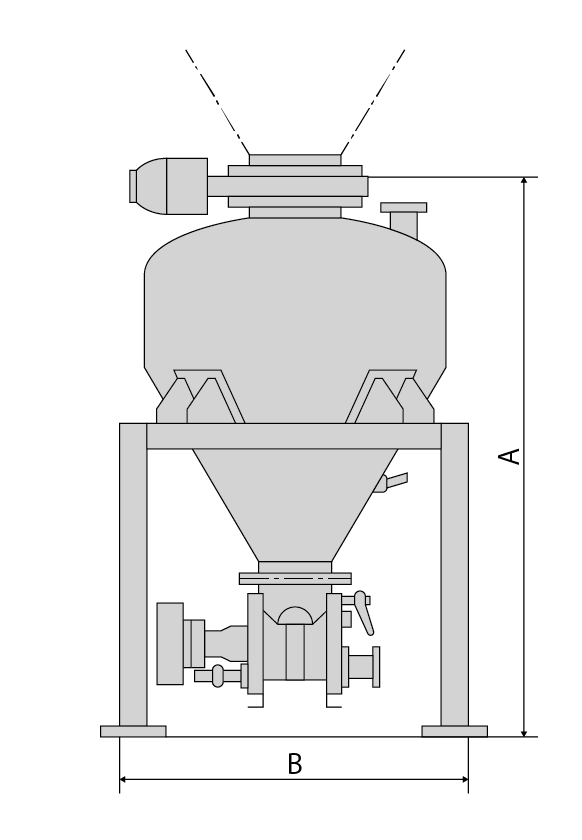

Model and parameters

Batch-conveyance type

Continuous-conveyance type

Flow chart
